| Capacity | Diameter | *Height | Supporting Legs | Thickness of Steel Plate | Weight |
| 50T | 3160 mm | 10.7 m | 219x5 | 4mm cone 5mm | 3.7T |
| 100T | 3160 mm | 10.7 m | 219x5 | 4mm cone 5mm | 5.5T |
| 150T | 3160 mm | 15 m | 219x6 | 4mm cone 5mm | 8T |
| 200T | 4500 mm | 11.5 m | 273x8 | 5mm cone 6mm | 12T |
| 300T | 5300 mm | 12.7 m | 325x8 | 6mm cone 8mm | 17T |
| 400T | 6800 mm | 11.7 m | 325x10 | 6mm cone 8mm | 21T |
| 500T | 6800 mm | 13.5 m | 325x8 | 6mm cone 8mm | 28T |
| 1000T | 8000 mm | 15.3 m | 325x12 | 6/8mm cone 10mm | 47T |
Why Bolted type cement silo:
Our factory produce bolted type cement silos from 30 tons to 1000 tons.
The silo is combined by four main parts: the cover, wall sections, cones and supporting legs. All parts are pressed by special machine and mold, especially the wall sections which can be changed every place on the wall.
The silo can be dismantled into many parts when transport, and can be installed with bolts easily, a 100T capacity silo can be assembled by 3 men in 3 days, so it is easy to transport and convenient to use.
It is equipped with automatic dust collector, butterfly valve, automatic broken arch and the upper and lower level indicators and other facilities.
Highlights
This bolted type cement silos are easily transported by pieces, especially for oversea transferring. 100 ton cement silo can be put into one 20GP container; while two sets take one 40HC container. In this way, it saves a lot of cost on shipping.

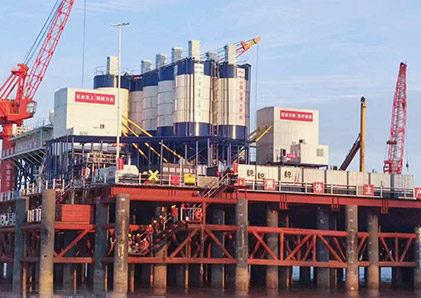

Our silos are widely use on large-scale infrastructure projects in China. Such as high-speed way, high-speed railway, cross-sea bridges. And, the bolted type silos exported to more than 40 countries all over the world.
The Cover
The top of the silo, for the 50T, 100T model, it is combined by 2 pieces, for the larger capacity silos, it may be combined by 4 or 6 pieces.
The Cover The Cone Parts
The cone is combined by three parts: big cone, middle cone and small cone. As it bears the whole weight, thicker steel plate is used to make sure the silo can be more reliable.
Model | 50-150T | 150T | 200T | 300T |
Big Cone | 4 | 4 | 6 | 8 |
Middle Cone | - | - | 4 | 4 |
Small Cone | 1 | 1 | 1 | 1 |
Thickness | 4mm | 5mm | 6mm | 8mm |
The Wall Section
All pressed by special machine and mold, and can be changed every place on the wall.
Model | 50 T | 100T | 150T | 200T | 300T | 400T | ≥500T |
Diameter | 3160mm | 3160mm | 3160mm | 4500mm | 5300mm | 6800mm | 6800mm |
Thickness | 4mm | 4mm | 4mm | 5mm | 6mm | 6mm | 6mm |
The Supporting Legs
Steel pipes are used as the supporting legs, combined by frames to make it stronger, and as different discharging height needed, the length can be customized
Model | 50 T | 100T | 150T | 200T | 300T | 400T | ≥500T |
Diameter x Thickness | 219x5 | 219x5 | 219x6 | 273x8 | 325x8 | 325x10 | 325x8 |
Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 6 |
The Ladder and the Safety Railing

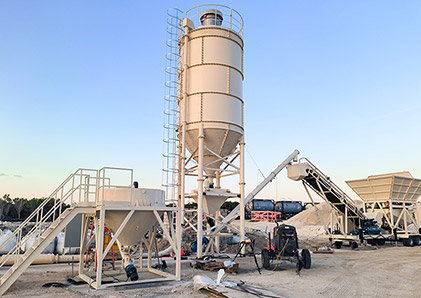

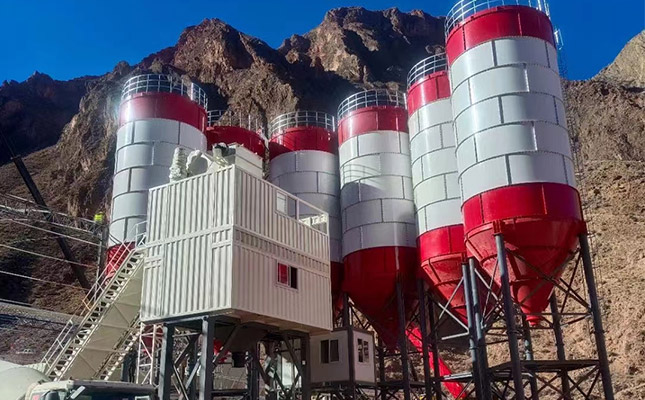

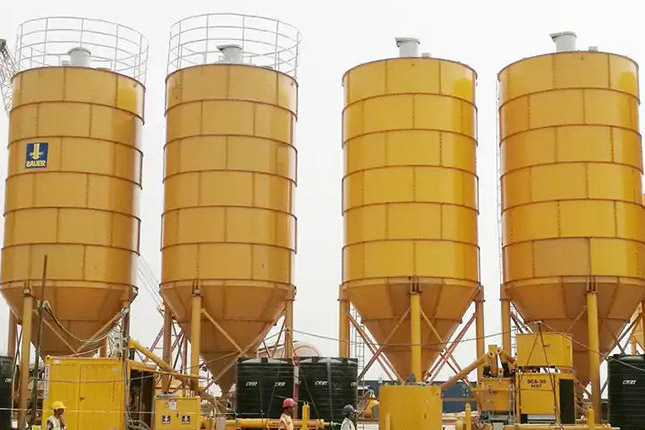

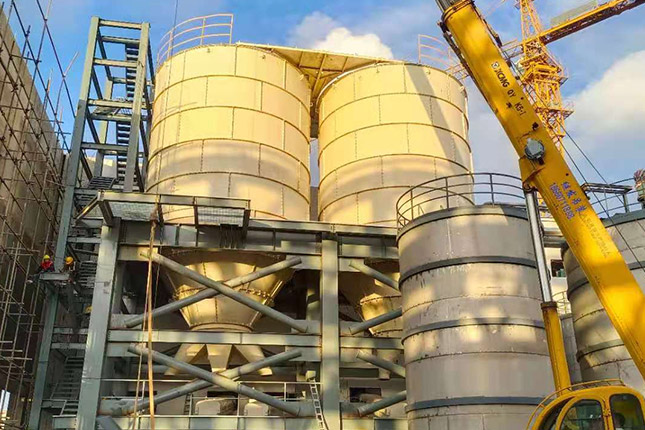

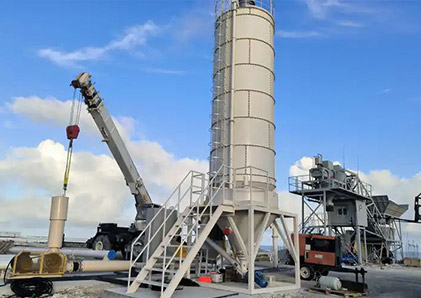

Successful Case of Bolted type cement silo:
Sddom One Stop Solution:
Sddom After-sales Service:
Oversea warehouses are established in Philippines, Uzbekistan, Pakistan, Indonesia, Malaysia and so on. Thus, if there is any problem, you can contact us immediately, and the plant will be maintained quickly in low cost.
