MIX CONCRETE WHENEVER AND WHEREVER

penumatic-1

penumatic-1

penumatic-3


Variable arrangement of the pipe makes the production craft process more reasonable.
The sustem is sealed and lead to few flying dust, It benefit for envionment protection.
Few movement parts, convenient maintenance, automatic control can be realized easily.
High efficiency of transportation reduce the cost of packing, loading and unloading.
Make the matedal avoid being damped, polluted, damaged, and mixed with other materal, the quality of conveying is assured.
 Vadous operation process can be realized meanwile for the conveying. such as mixture, crush, grade, dryness cooling, and dust collection.
 Send the material from couple place to one place and from one place to couple place, reatize far distance operation.
For the material with erratic chemical character, can adopt inertia gas conveying.

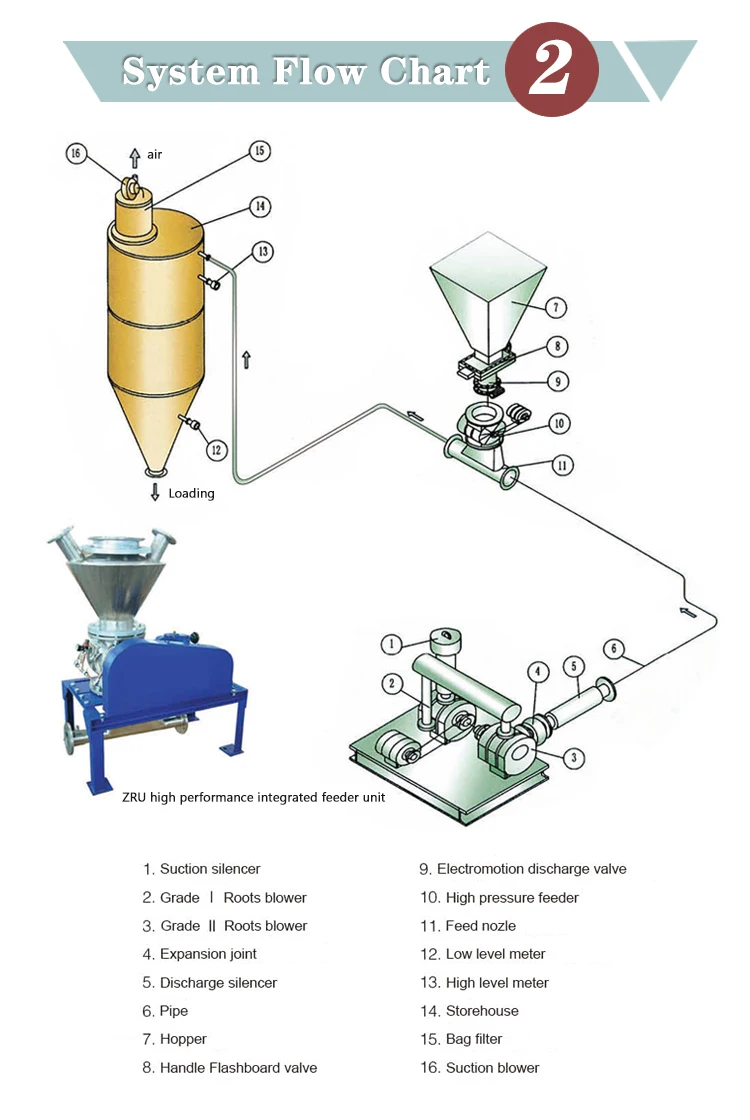

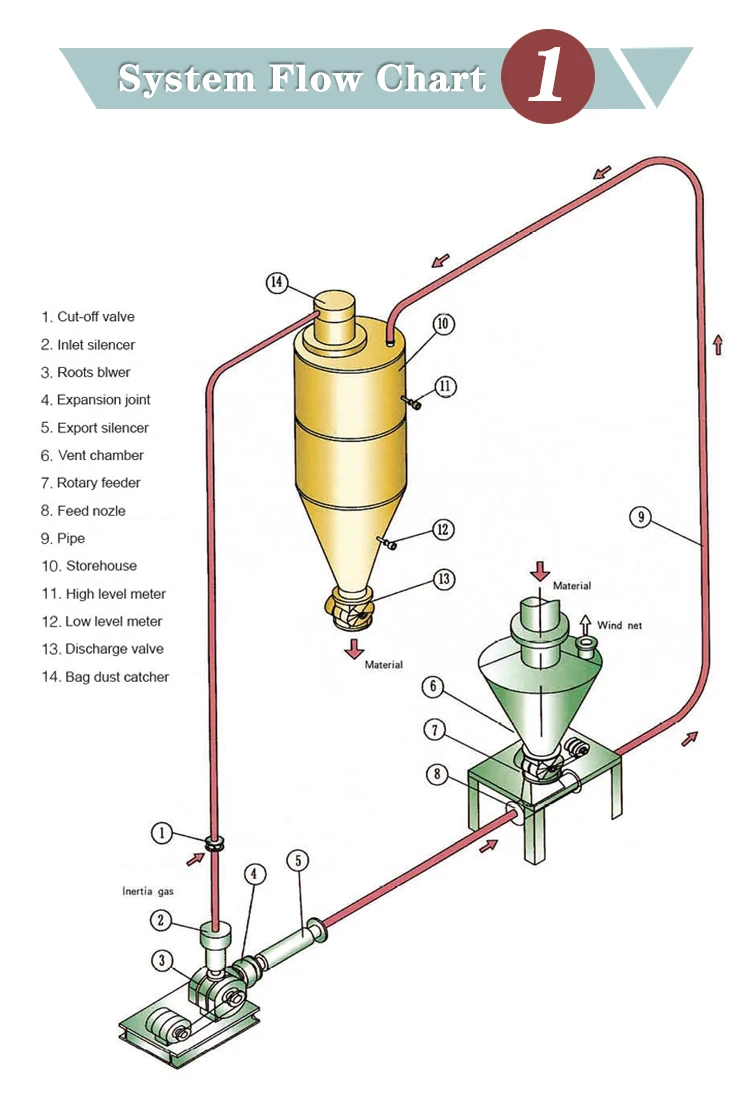

system flow chart:


Item
Trans mode
Trans quantity (t/h)
Trans pressure (KPa)
Trans pipe diameter (mm)
Trans height (m)
Trans distance(m)
Parameter
Continuous middle low pressure conveying
0.1~50
29.4~196
50~150
5~30
30~200
Item
Trans mode
Trans quantity (t/h)
Trans pressure (KPa)
Trans pipe diameter (mm)
Trans height (m)
Trans distance(m)
Parameter
Continuous middle low pressure conveying
0.1~50
98~300
50~150
20~40
50~300


Item
Trans mode
Trans quantity (t/h)
Trans pressure (KPa)
Trans pipe diameter (mm)
Trans height (m)
Trans distance(m)
Parameter
Continuous middle low pressure conveying
0.1~100
100~600
40~200
40
<100

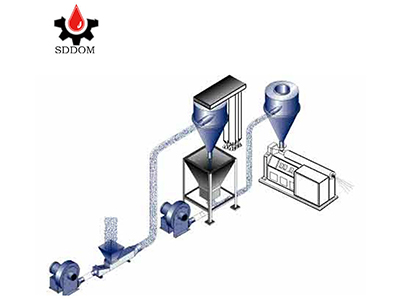

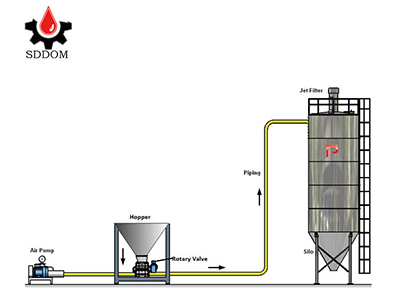

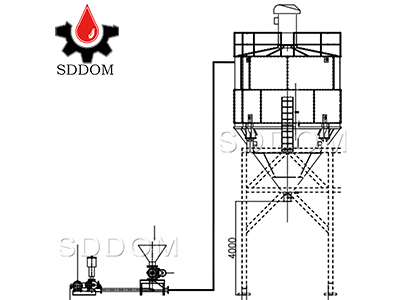

Sddom Cases:
