MIX CONCRETE WHENEVER AND WHEREVER

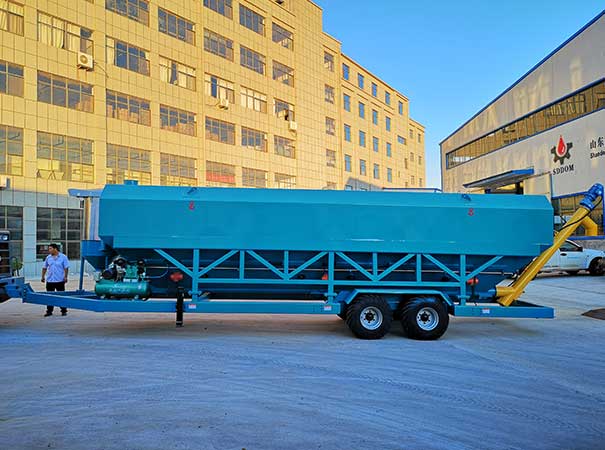

35 tons Mobile concrete horizontal cement Silo fly ash storage hopper with wheels

35 tons Mobile concrete horizontal cement Silo fly ash storage hopper with wheels

Model

CS35B

CS20B

Capacity

27.6m³, 35t

15m³, 20t

Weight

6500 kg

4600 kg

Diamention

9797*2216*2677mm

6447*2108*2677mm











Main Parts

SIMENS Control cabinet

1*Air-jet dust collector

1*Stainless pressure relief valve

6* Vibrator

8*Upper and lower level sensors

1*Horizontal Screw conveyor   in  219mm

1*Pneumatic tires

1*Air compressor

10*Arch breaking device

7*leveling support-legs



Why 35 tons Mobile concrete horizontal cement Silo fly ash storage hopper with wheels :

Mobile cement silos are typically mounted on a trailer or truck chassis, making them easy to tow behind a vehicle and set up at the job site. They can hold 15M3 to 27.6M3 cement,about 20T to 35T(density bases on 1.3T/M3). All of  SDDOM’s mobile silos are built for ease and mobilisation, mounted horizontally onto a chassis. Designed as a trailer system with retractable legs, this mobile silo can be deployed in any application quickly and easily without any elaborate foundation work. The silo comes completely fitted with dust filter and screw conveyor which has its own transport mounting on the silo and thus does not need to be transported separately.

Features

SDDOM’s mobile silos are available in various cement storage capacities: 20T 35T

  • Ready for immediate on the road      transportation

  • Set-up your mobile silo to be operational      within hours.

  • Substantially reduce your set-up costs –      no civil works, no cranes

  • Eliminate cement loss

  • Transfer cement using the best components.      Reliability and performance assured.

  • Operate, inspect and service your mobile      silo safely and efficiently

cementsilo2.jpgcement silo2

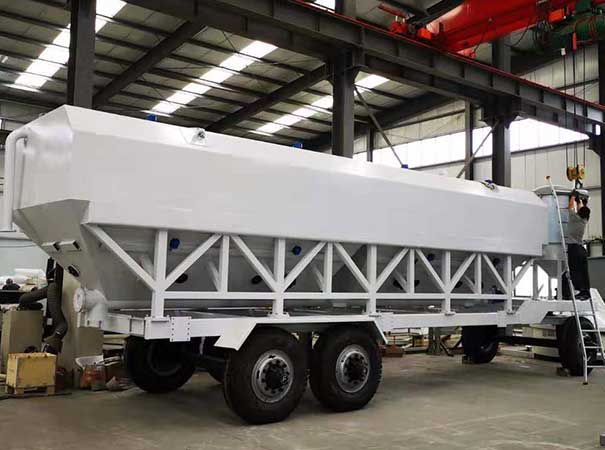

SDDOM Top brand portable Blending silos mobile CS27 type horizontal cement silo used for concrete mixing plant for sale

cement silo1cement silo2

sddom 35 tons Mobile concrete horizontal cement Silo fly ash storage hopper with wheels

smallcementsilocement silo2

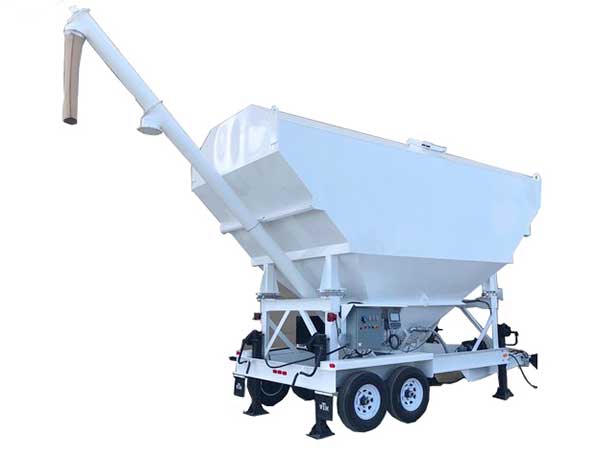

20T 15M3 silo

Title Weighing cement silo trailers with silo weight load cell mini cement silo

Sddom One Stop Solution:

Sddom After-sales Service:

Our services are available at 7*24 hour all year around. We regularly visit our customers to inspect concrete batching plant; Professional engineers will be sent to install and maintain concrete batching and mixing plant when necessary; We provide free and professional training for operator and maintenance workers, and free technical consultation services are also provided by us;

Oversea warehouses are established in Philippines, Uzbekistan, Pakistan, Indonesia, Malaysia and so on. Thus, if there is any problem, you can contact us immediately, and the plant will be maintained quickly in low cost.
