MIX CONCRETE WHENEVER AND WHEREVER

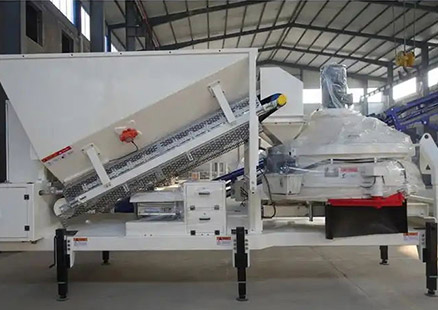

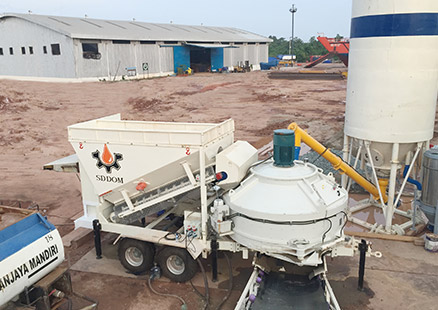

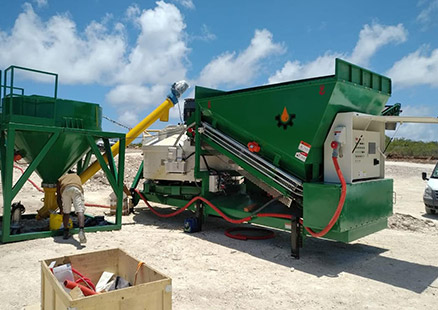

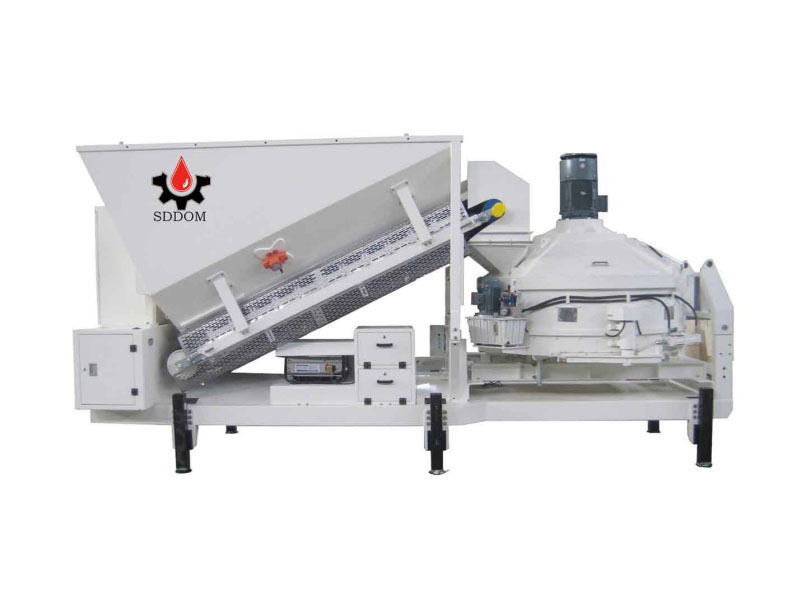

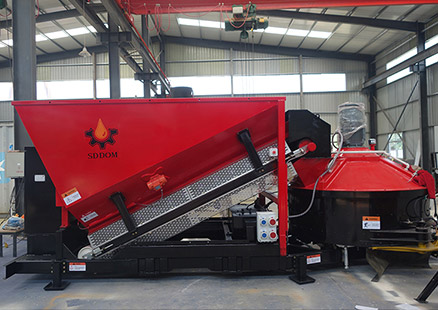

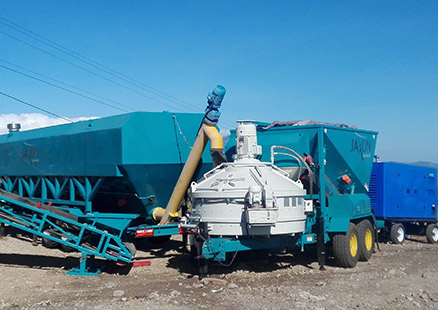

SDDOM mobile concrete batching plant is the most flexible and most mobile concrete batching plant on market. It is best for industrial and residential construction projects where speed with quality is the basic requirement.
Model | MC1200 | MC1500 | MC1800 | MC2200 |
Production capacity | 14-24 m³/h | 20-33 m³/h | 23-41m³/h | 36-56m³/h |
Planetary concrete mixer | MP500 | MP750 | MP1000 | MP1500 |
Mixer motor power | 18.5 kw | 30 kw | 37 kw | 45 kw |
Aggregate bins | 2*3.2m³/ 2*6m³ | 2*3.2m³/ 2*6m³ | 2*3.2m³/ 2*6m³ | 2*3.2m³/ 2*6m³ |
Weighing accuracy | ±1% | ±1% | ±1% | ±1% |
Discharging height | 1m/3.8m | 1m/3.8m | 1m/3.8m | 1m/3.8m |
Why MC legs type Mobile Concrete batching plant:
SDDOM MB series mobile concrete batching plant is the most flexible and mobile concrete batching plant. Different models are provided according to different production capacities .
1. High quality and durability
2. Convenient to move from site to site, very quickly by one or two trucks
3. Perfect mixing performance
4. Fully automatic control system with SIEMENS PLC and Schneider electrical elements
5. Easy and fast to set up onsite, 3 persons can finish in one day, very low labour cost
6. No civil work is required to build concrete foundation or ramps, it can sit on flat ground directly
7. Flexible configuration and customized design as per client’s requirement !
1. Planetary concrete mixer
The planetary concrete mixer has excellent mixing way to produce fully mixed precast concrete, which can be used for site construction directly.
Features
* The mixers with vertical shafts allow the rapid mixing of all types of quality concrete. The great versatility of the mixer enables it to have best performance in the production of concrete.
* The gearbox unit (patent technology), specially designed for a balanced distribution of power to the various mixing device, ensure a low-noise rotation without backlash even under severe working conditions.
* The discharging door can be half-open, full-open and full close, to control the discharging speed of the mixer.
* Ni-hard cast iron blades are more wearable. As an alternative, we also offer polyurethane blades for special requirements.
Sddom One Stop Solution:
Sddom After-sales Service:
Oversea warehouses are established in Philippines, Uzbekistan, Pakistan, Indonesia, Malaysia and so on. Thus, if there is any problem, you can contact us immediately, and the plant will be maintained quickly in low cost.
