MIX CONCRETE WHENEVER AND WHEREVER
MIX CONCRETE WHENEVER AND WHEREVER

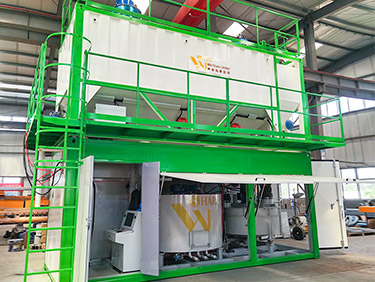

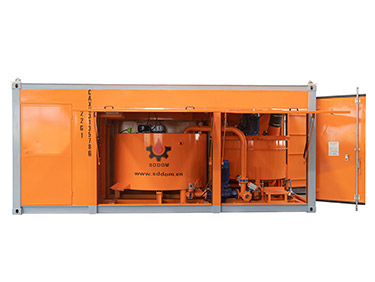

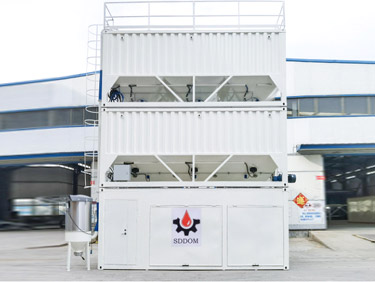

As a professional manufacturer from China, SDDOM group has manufactured NJ grout batching plant for batching and mixing concrete in accordance with the requirements of customers and required location. Container type grout batching plant, with 10-50m3 capacity, is widely adopted and trusted by grout producers to manufacture high quality grout in an environment-friendly and efficient way all around the world.
Name | Grout mixing plant |
Model | NJ50 |
Material | Carbon steel (Mixing tank-8mm, Temporary hopper-6mm) |
Capacity | 50m3/h |
Total Power | 44KW |
Max.Pumping height | 30m |
Max. Pumping distance | 150m |
Input material method | Screw conveyor |
Output material method | Pump |
Transport | As one 20 GP container |
Size | 6058*2438*2591mm |
Weight | 6.8 ton |
Why NJ grout Batching Plant:
SDDOM automated batch plants are specially designed for accurate weight proportioning of multiple powdered and/or fluid ingredients. These plants automatically batch the ingredients by weight. The grout or slurry proportioning is programmable and controlled by an onboard computer. The plant is specifically well suited for soil mixing and jet grouting production requirements.
1. High efficient. It can mix within 45 seconds and can produce around 50 cbm per hour ;
2. Easy operation. It is equipped with automatic control system, thus the whole plant can be operated through a computer;
3. Small size. It with small grout production capacity is produced with small size to meet the production location.
4. High quality. To guarantee the quality of products, it famous brand electric components, including Schneider, Weidmuller, Chint and Dell, and mixer drums adopts 6-8mm Q345 high strength steel;
5. Easy maintenance. We have oversea warehouses in many countries, including Philippines, Uzbekistan, Sri Lanka, Parkistan, Indonesia and so on. Thus, if there is any problem, you can contact us immediately, and the plant will be maintained quickly in low cost.
Mixing system
5m3 mixer with a mixing shaft to the bottom. There are 2 mixing methods at the same time. One is mixing blades. Another is, the finished product will return to the mixer again, and this equals another water mixing.
Item | parameter |
Theoretical volume | 3m3 |
Motor reducer power | 4kw |
Output pump | 15kw |
Additive System
Water System
Control system

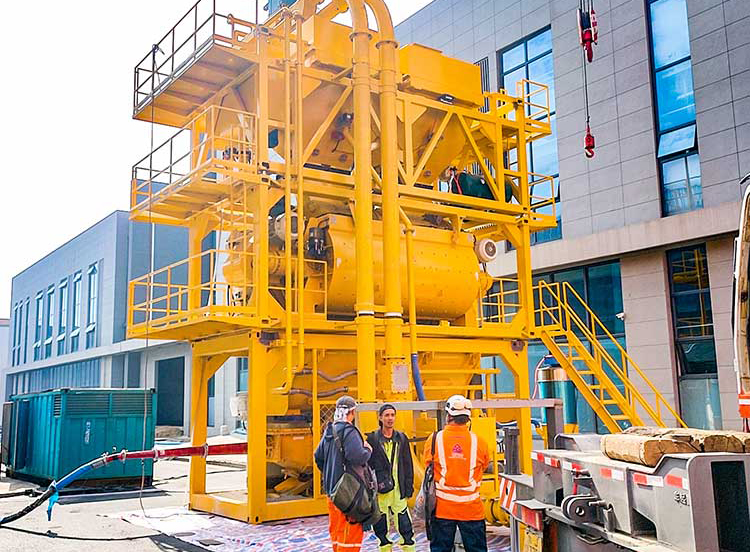

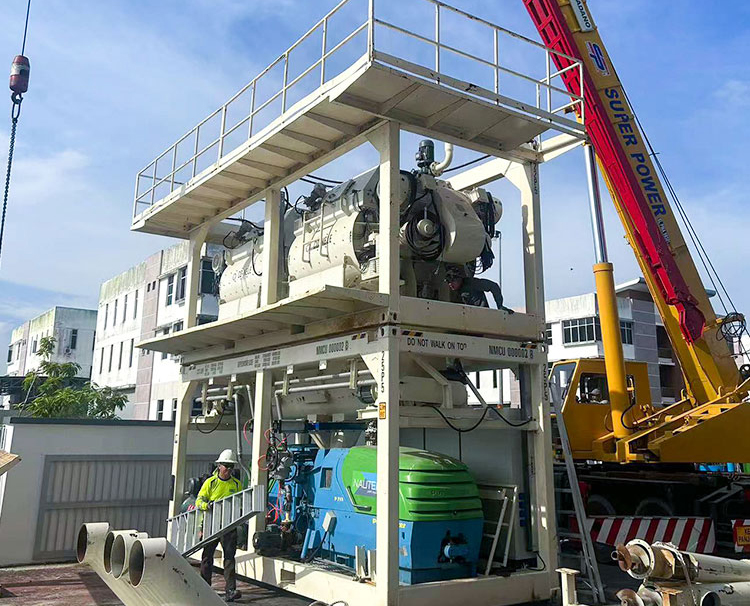

Successful Case of NJ grout Batching Plant:
Sddom One Stop Solution:
Sddom After-sales Service:
Oversea warehouses are established in Philippines, Uzbekistan, Pakistan, Indonesia, Malaysia and so on. Thus, if there is any problem, you can contact us immediately, and the plant will be maintained quickly in low cost.
SDDOM Machinery is the most innovative concrete machinery company.
