Model (hoppper type) | HZS75 Concrete Batching Plant |
Productivity | 75m3/h |
Concrete mixer | JS1500 |
Aggregate batcher | Standard 3*8m3 or Customized |
Feeding mode | Skip hopper |
Max aggregate | 60/80mm |
Aggregate weighing accuracy | ±2% |
Cement/water/Additive weighing accuracy | ±1% |
Control system | Full automatic computer control |
Total power | 125kw |
Total weight | 50 tons |
Why HZS75 Concrete Batching Plant:
1. High efficient. The HZS75 cocncrete batch plant can mix within 45 seconds and can produce around50,000 cube concrete;
2. Easy operation.HZS750 concrete plant is equipped with automatic control system, thus the whole plant can be operated through a computer;
3. Small size. HZS75 concrete batch plant with small concrete production capacity is produced with small size to meet the production location.;
4. High quality. To guarantee the quality of products, HZS75 concrete batch plant uses Schneider brand electric components, ,and mixer drums adopts 6-8mm Q345 high strength steel;
5. Easy maintenance. We have oversea agents in many countries, including Thailand, Uzbekistan, Kazakhstan, and so on. Thus, if there is any problem, you can contact us immediately, and the plant will be maintained quickly in low cost.
The whzole plant has 5 parts, include aggregate batcher, aggregate feeding system, mixer, weighing system and the control system.Main parts of HZS75:

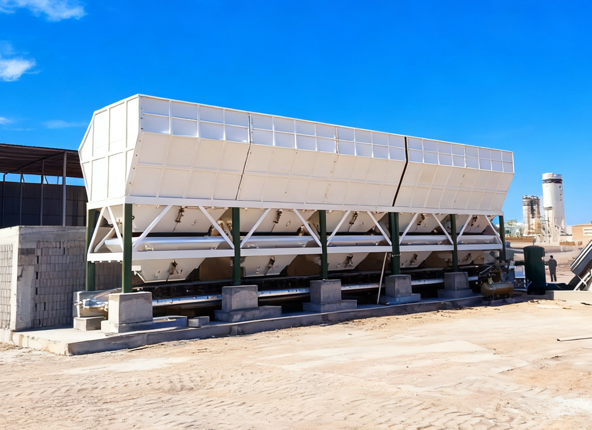

A.Aggregate batcher:
HZS75 concrette plant has 3 units 8m3 bins and one aggregate weighing hopper.The aggregate is culmulative weighing.
Features of aggregate batcher:
1.3 units 8m3 bins
2.Cumulative weighing
3.Match 2 vibrator
4.Include flat belt conveyor, belt width 800mm
B.Aggregate feeding system
Aggregate use skip hopper to feed the aggregate to the mixer.Or can use high flange belt conveyor as an optional choice.
Features of Conveyor System:
1.Hopper voilume:2250L 2.Small area
C.Mixer
The mixing system is the main part for the whole plant. And this plant is equipped with JS1500, which is more suitable for mixing dry and hard concrete.Planetary type mixer as an optional choice.
Features of JS1500 Concrete Mixer:
1.The concrete mixer is equipped with twin shaft mixer, having longer service life;
2.We also own patented mixer shaft sealing technology researched by our R&D teams;
3.We also provide planetary mixer and single shaft mixer to meet different clients’ demands;
4.Mixer drums adopts 6-8mm Q345 high strength steel, which is wear-resisting and can produce around 50,000 cube concrete.
D.Weighing system
Weighing system include cement weighing hopper, water weighing hopper and additive weighing hopper.
Features of weighing system:
1.Accurate weighing. The HZS75 concrete mixing plant adopts the method of accumulative measurement and automatic system, thus it performs accurate when weighing.
2.Tonele Brand Load cell or Media Brand
E.Control system
Full automatic computer control.There are 2 models.Manual and Auto.
1.Accurate. The whole operation is controlled by automatic system, thus it performances more accuracy;
2.Easy operation. Equipped with automatic control, batching and weighing system, HZS75 concrete plant is easy to operate.
3.All the el;ectric elements are Schneider Brand.
Sddom One Stop Solution:
Sddom After-sales Service:
Oversea warehouses are established in Philippines, Uzbekistan, Pakistan, Indonesia, Malaysia and so on. Thus, if there is any problem, you can contact us immediately, and the plant will be maintained quickly in low cost.
