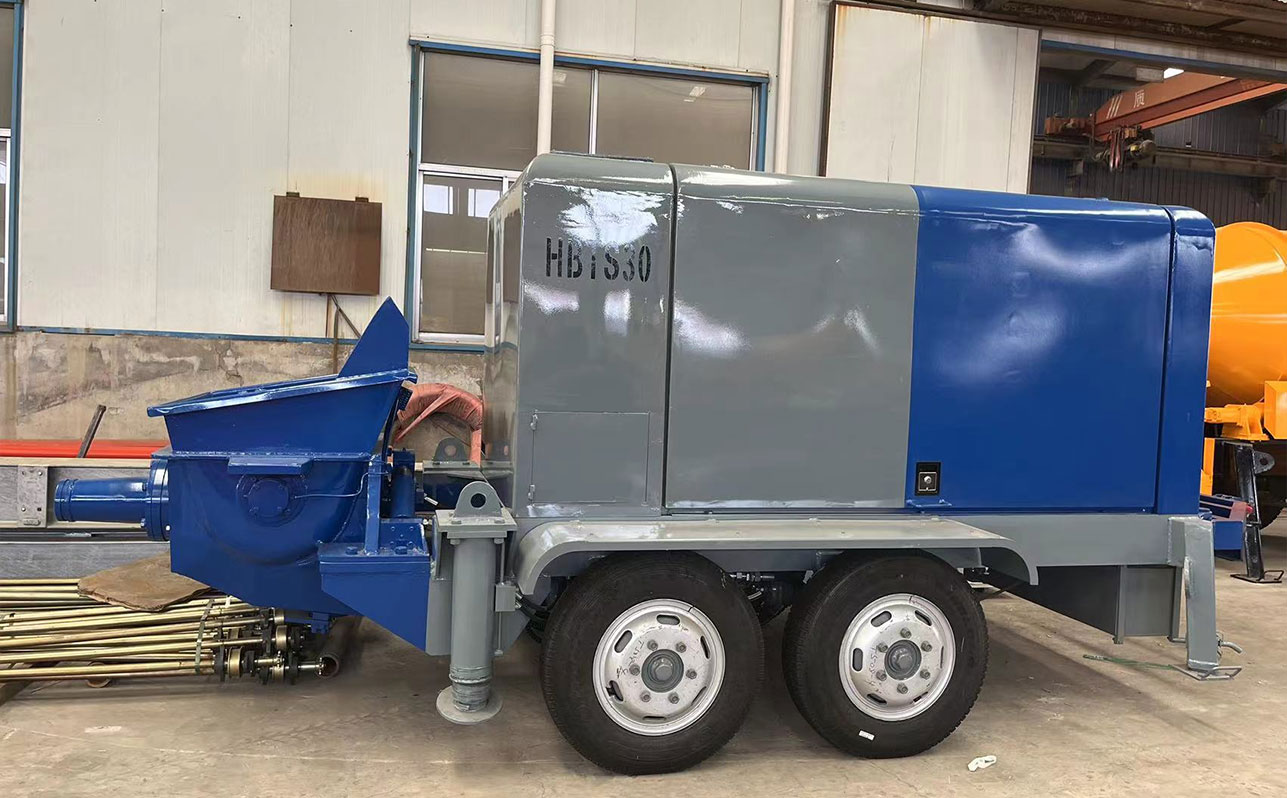

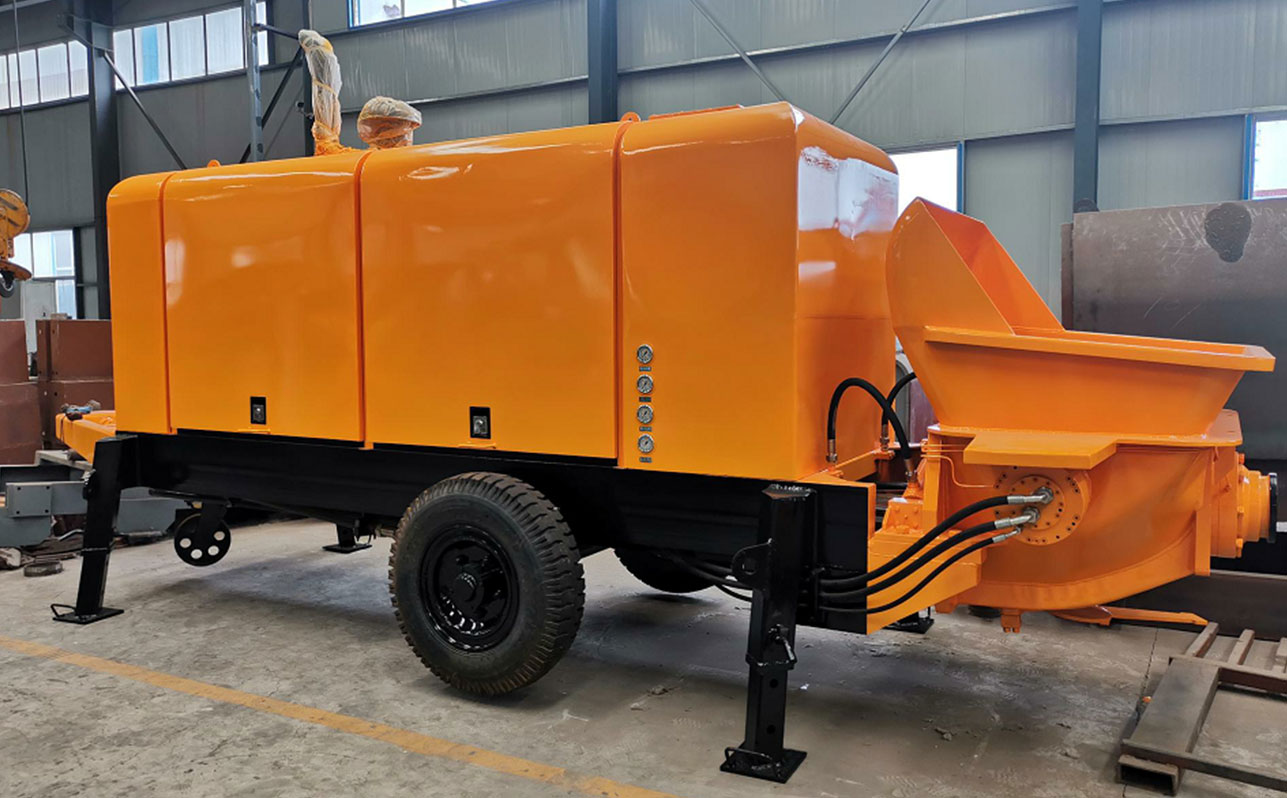

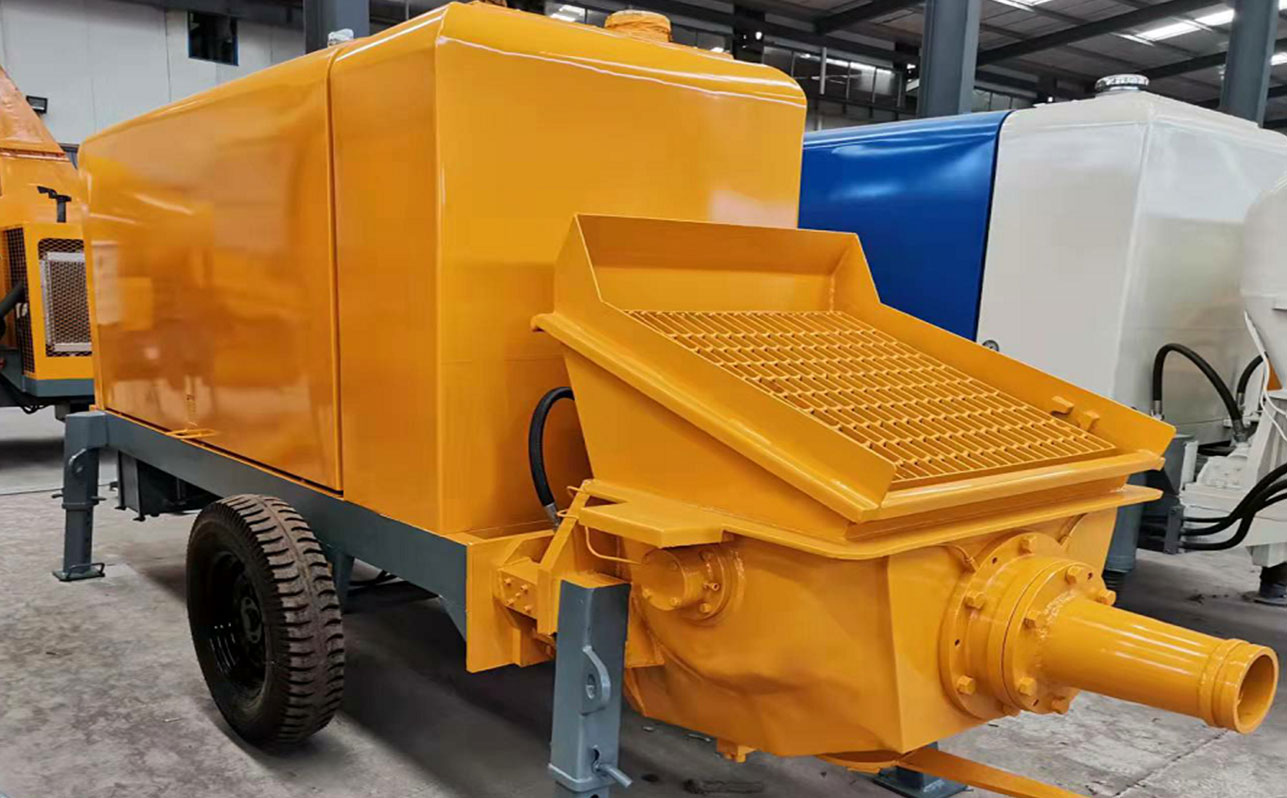

pump trailer driven by electric or diesel engine. SDDOM concrete trailer pump is composed of concrete pump body, delivery pipe and famous brand diesel engine. It is a kind of construction machinery that uses high pressure to continuously transport concrete along the pipeline to high place. Concrete pump trailer is mainly used in construction of houses, bridges and tunnels.

Pumping Capacity: 20 m³/h

Maximum aggregate size: 20mm

Vertical Conveying Distance:100 m

Horizontal Conveying Distance:200 m

Pumping Capacity: 30 m³/h

Maximum aggregate size: Gravel≤30

Vertical Conveying Distance:150 m

Horizontal Conveying Distance:500 m

Pumping Capacity: 60 m³/h

Maximum aggregate size: pebble≤50 gravel≤40

Vertical Conveying Distance:270 m

Horizontal Conveying Distance:1200 m

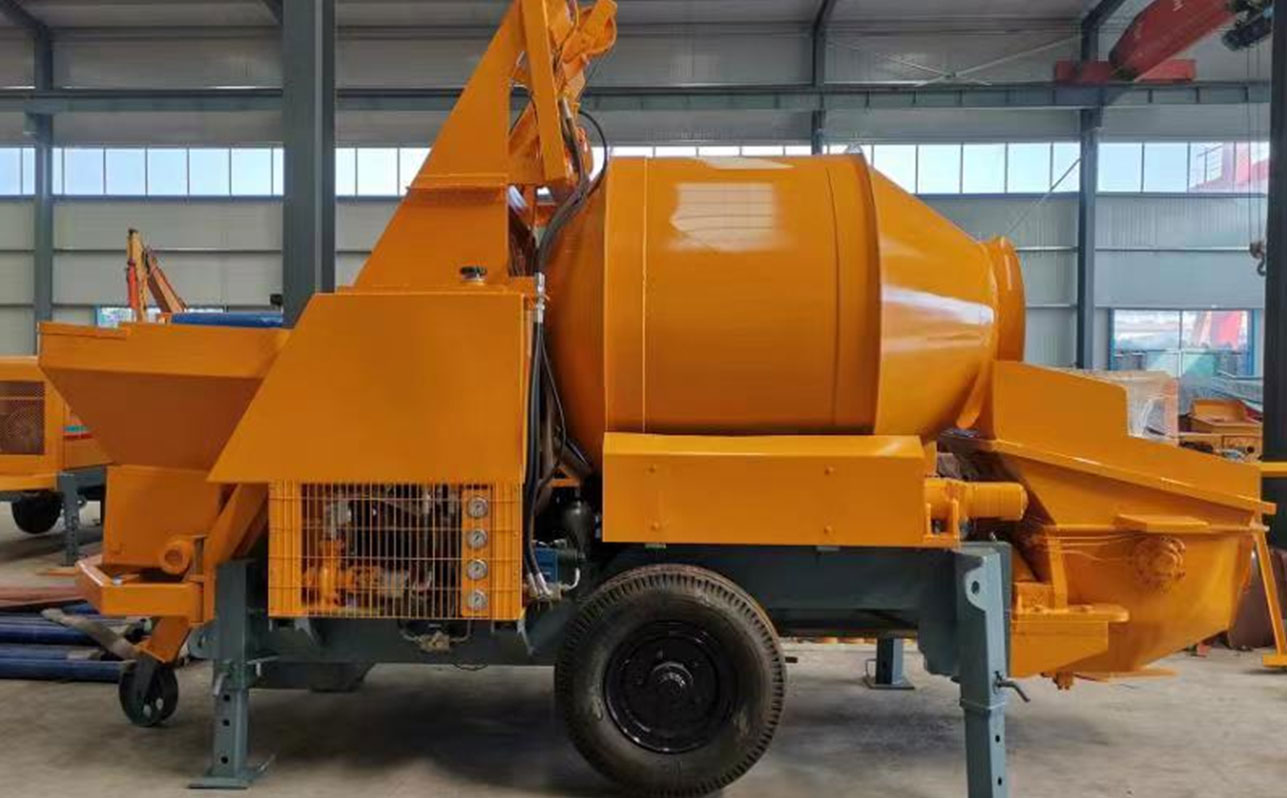

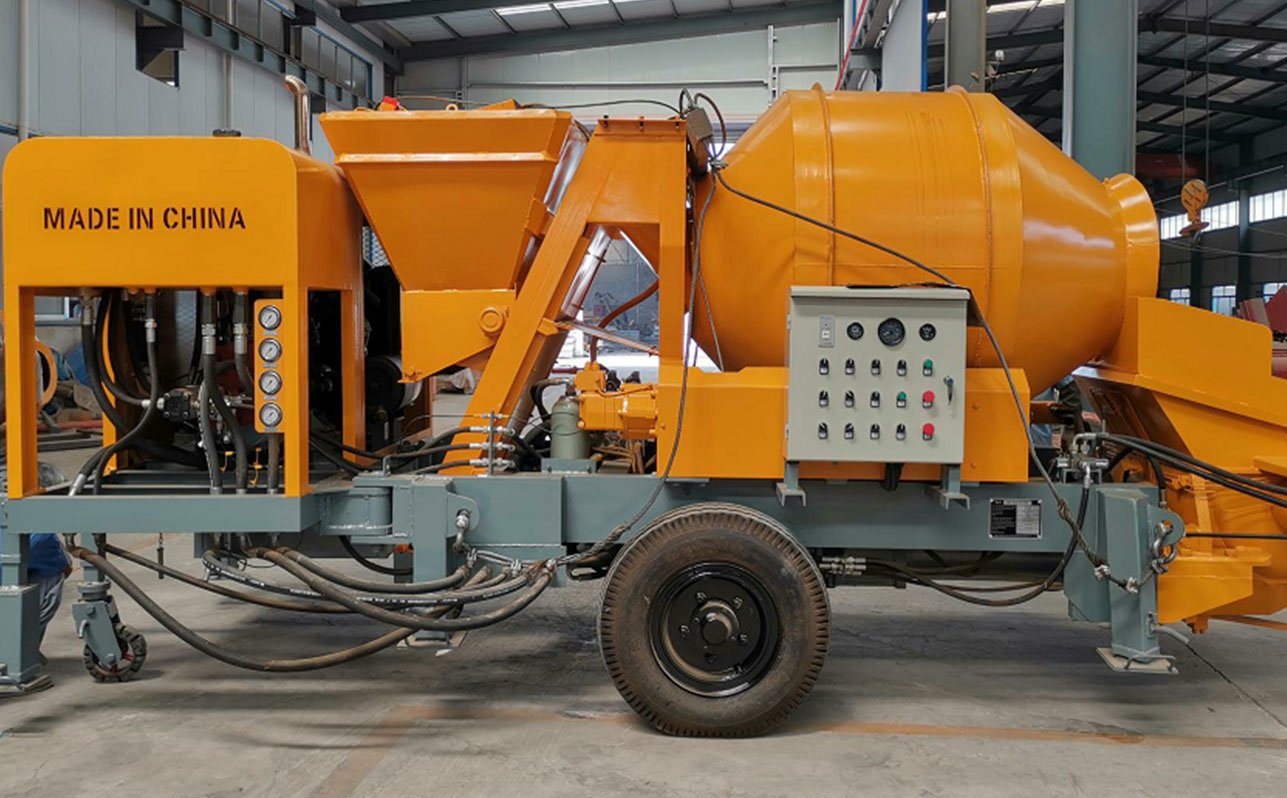

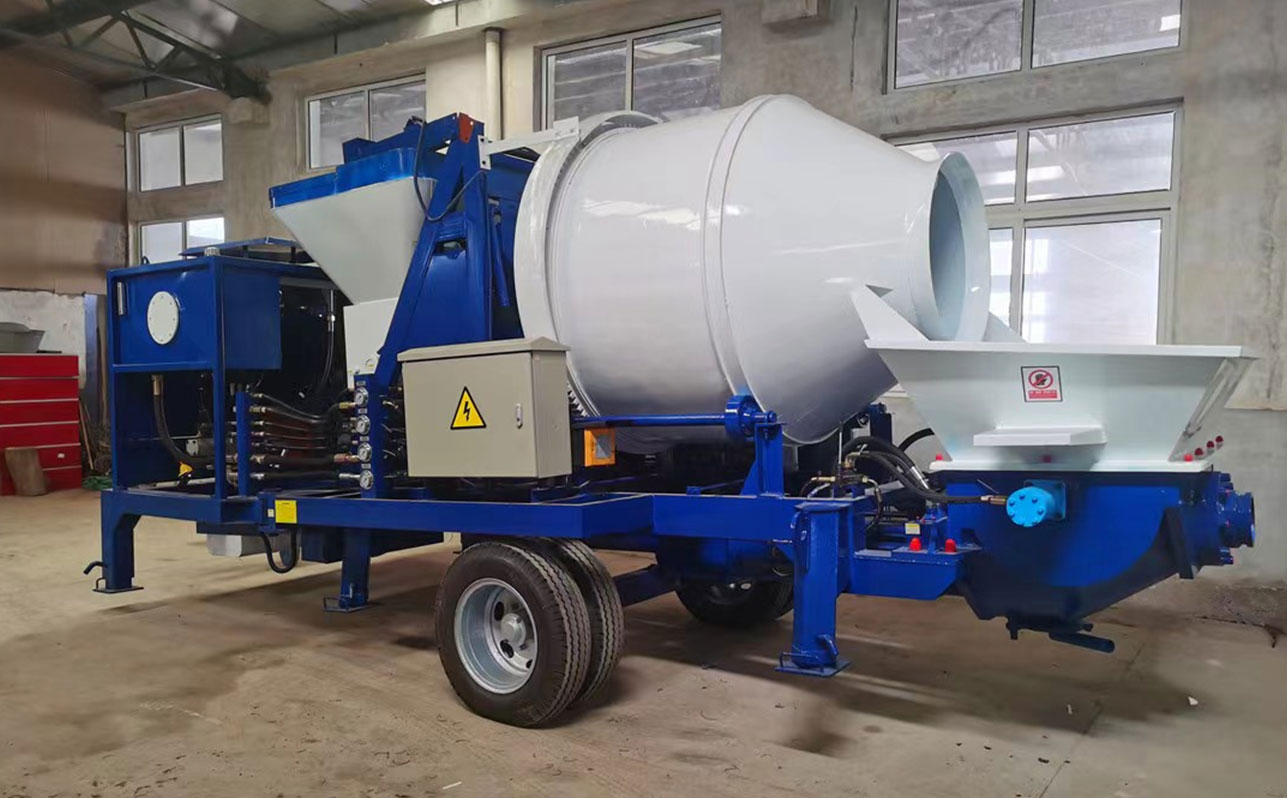

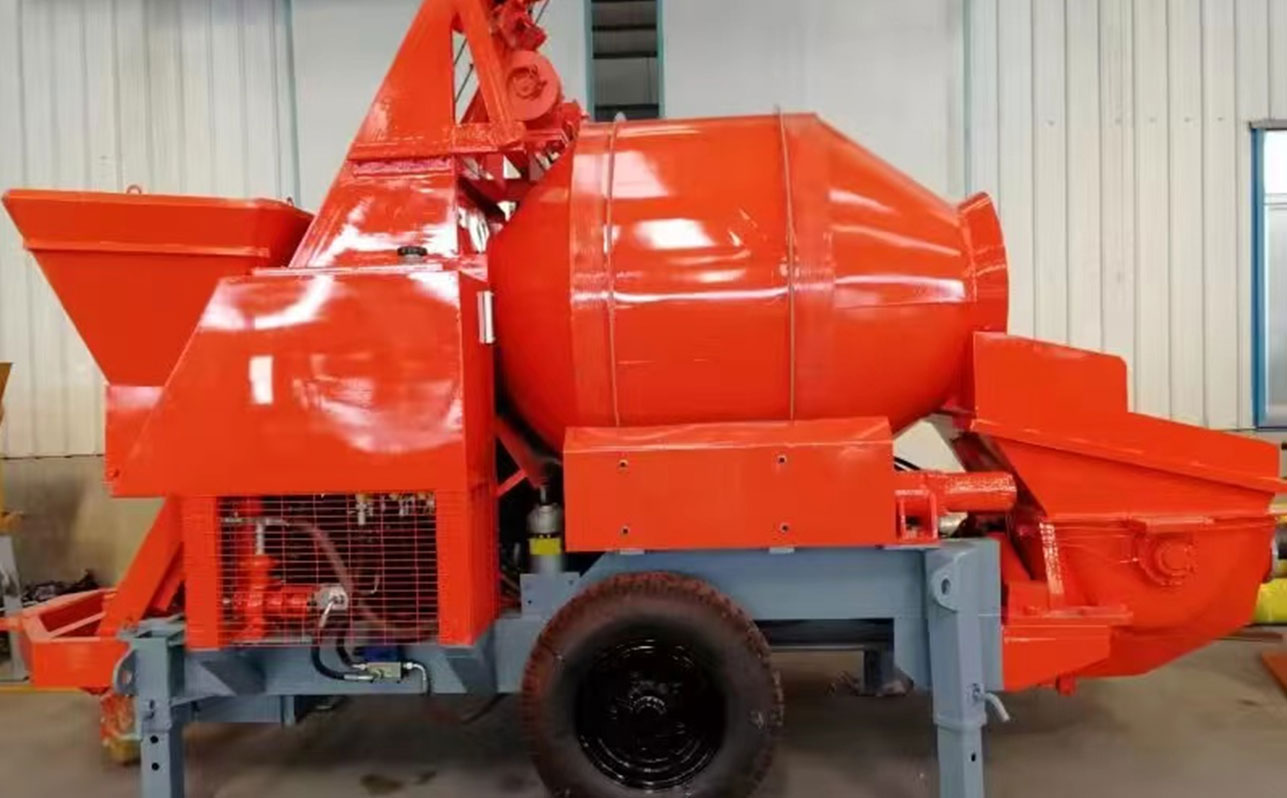

Concrete mixer pump integrates concrete feeding, mixing and conveying functions seamlessly in one concrete pump machine, the concrete mixer pump can be driven by diesel engine or electric motor as your choice. It is widely used for continuously concrete mixing and conveying through high hydraulic pressure along the pipeline in such applications as housing building, bridge or tunnel construction. SDDOM brand concrete mixer pump is made with high wear and strong corrosion resistant chrome alloy steel to greatly improve the product performance, and is optimized by the electric proportional control buffering, pressure difference sensing and reversing technology to decrease high pressure oil pump reversing time. Our concrete mixer pump is intelligently controlled to achieve the perfect and high efficient concrete mixing and conveying, it features compact structure, stable concrete pumping, energy saving, high efficiency, flexible movement and easy operation, etc.Its main parts include diesel engine domestic brand yuchai,KAWASAKI main oil pump, Germany Bolseen valves, high-pressure pipes, glass-like plate and cutting ring, concrete cylinder etc.

Theoretical concrete delivery capacity：15m³/h

Concrete slump range: 120-230mm

Aggregate size：≤30mm

Diesel engine power：60KW

Rated speed：2300r/min

Cylinder diameter/stroke of the pumping cylinder：Φ80/700mm

Concrete cylinder diameter/stroke：Φ140/700mm

Tank volume：280L

Diesel fuel tank capacity：85L

Max Theoretical Concrete Output (m³/h)：30

Concrete slump (mm)： 100-200

Aggregate size：30mm

Power (KW)：78kw

Conveying Cylinder Diameter (mm)：110/1000

Concrete Cylinder Diameter (mm)：180/1000

Max Conveying Distance (vertical Height/Horizontal Distance) (m)：150/500m

Discharging capacity：350L

Feeding capacity：560L

Max Theoretical Concrete Output (m³/h)：40

Concrete slump (mm)： 100-200

Aggregate size：40mm

Power (KW)：78kw

Conveying Cylinder Diameter (mm)：110/1000

Concrete Cylinder Diameter (mm)：180/1000

Max Conveying Distance (vertical Height/Horizontal Distance) (m)：150/500m

Discharging capacity：450L

Feeding capacity：720L
